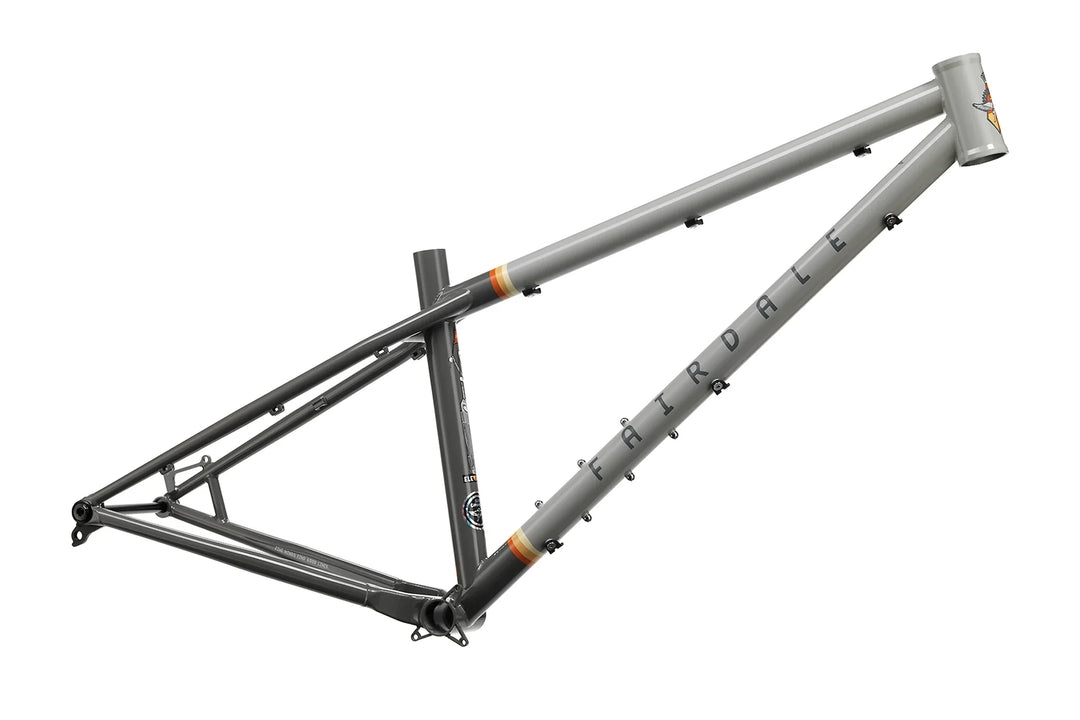

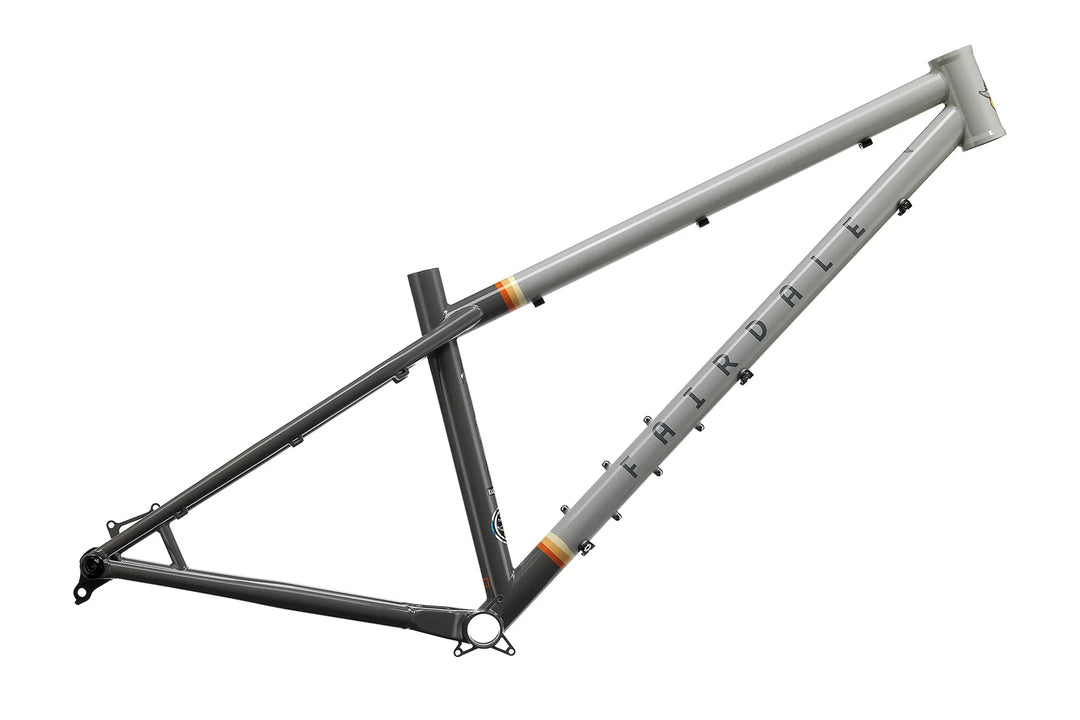

Fairdale Elevator 29" Frame

Introducing the Fairdale Elevator.

The Fairdale Elevator is a BMX-inspired, full chromoly all-arounder with a geometry that is focused on nimble maneuverability and predictable climbing and descending. While many modern bikes are long and low, the Elevator’s unique ride-feel will let you easily throw in a manual or re-adjust your position on a line, thanks to the super short 406mm chainstay length.

As always, making the ride fun is our main priority. This is a frame that lets you feel like a rider again instead of being a passenger. Proudly sticking to Fairdale’s user-friendly approach to frame construction, its straight seat tube will allow you to fully insert a dropper post of the maximum possible drop, and the Elevator’s removable, external cable routing is a breeze for assembly and maintenance.

Frame kit includes sealed FSA Orbit ITA headset (not shown), UDH derailleur hanger, and Boost thru-axle.

Features

• 100% 4130 chromoly 29” rigid frame
• Butted top tube, down tube, and seat tube
• Highly maneuverable BMX-inspired geometry
• Investment cast yoke allows for extra short chain stays and 2.5” tire clearance
• External brake, derailleur, and dropper post routing with removable hardware
• Extensive hardware for bottles, accessories and ISCG mounting

Sizing

Medium Reach: 5'7" - 5'11" height
Large Reach: 5'10" - 6'2" height

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Geometry
